← Design LibraryResidential

Residential show-apartment kitchen

galley and island kitchen runs: handleless cabinets, stone tops, tall fridge / oven towers, hood over gas hob

3 references · concept studies, not photographs of completed projects

Browse our published examples freely. Matching references to your property, adapting layouts or finishes, and developing drawings begins within a paid ELS service.

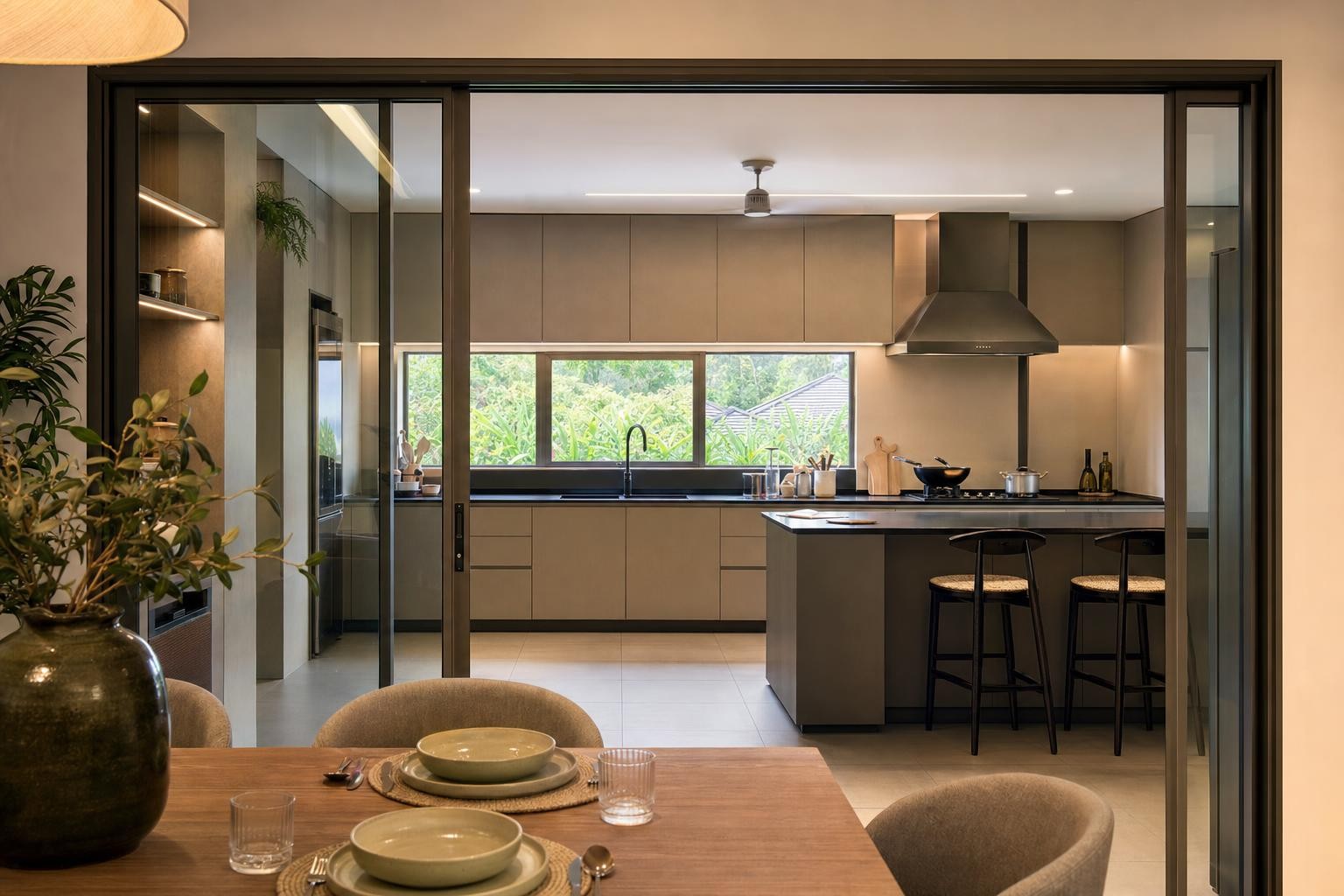

residential show-apartment kitchen — concept study
Residential show-apartment kitchen
Concept study

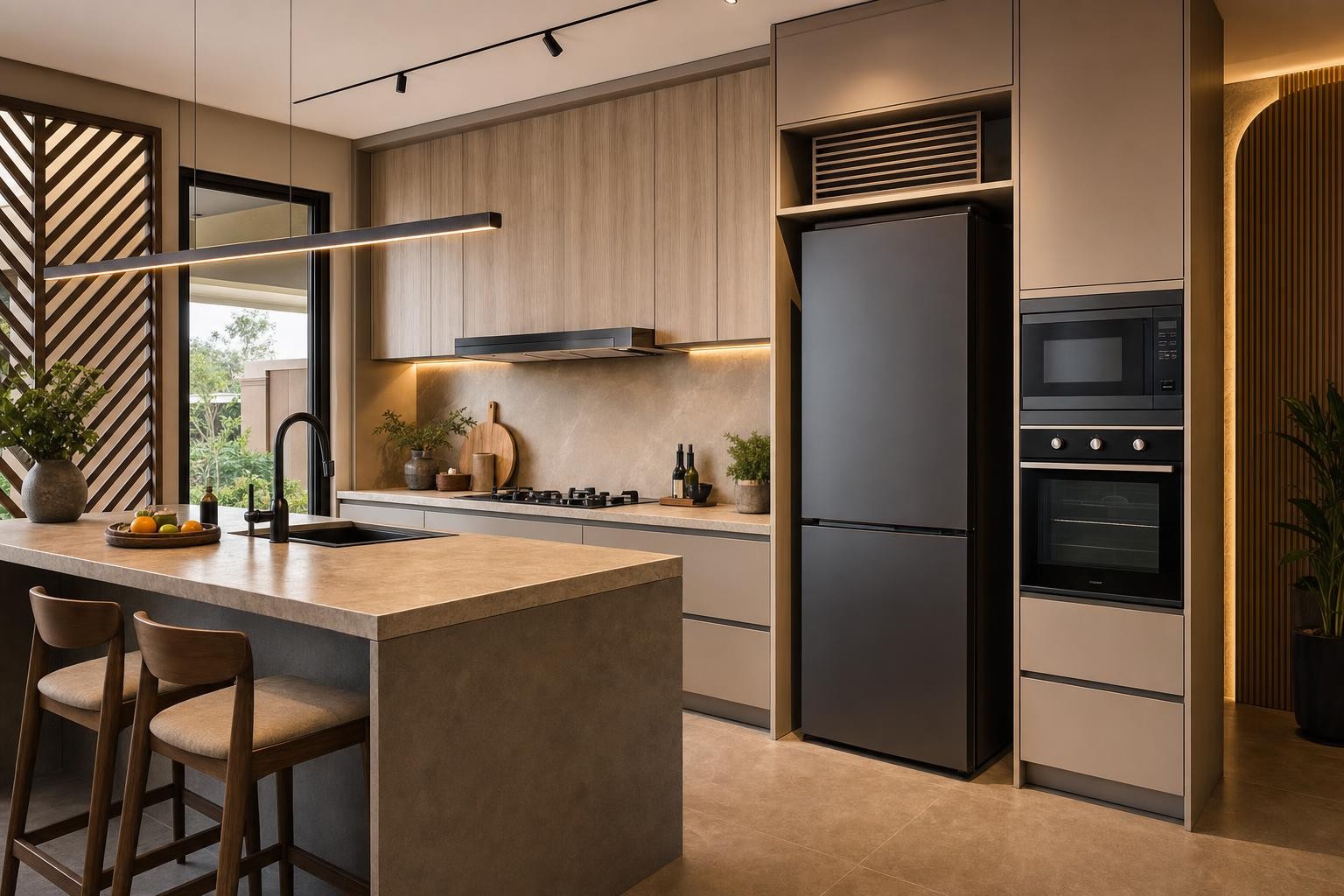

residential show-apartment kitchen — concept study
Residential show-apartment kitchen
Concept study
residential show-apartment kitchen — concept study
Residential show-apartment kitchen
Concept study

Decisions behind this room

Before you choose a look for your residential show-apartment kitchen, these are the decisions that actually shape it — each shown with its options side by side, so the difference is visible rather than described.

KIT-08

Handle approach

Handle approach — Bar pull (surface-mounted)
Bar pull (surface-mounted)
Best for
Everyday kitchens where a confident grip matters more than a flush line — and the easiest handle to replace later.
Watch out
Protrudes into circulation; in a galley it catches sleeves and pockets. Screw centres are fixed, so a later swap is limited to the same drilling.
Handle approach — Integrated edge pull
Integrated edge pull
Best for
A quieter line than a bar pull while keeping a real finger grip.
Watch out
The lip collects grease directly under the hand — the first place a wet kitchen shows wear.
Handle approach — Handleless / recessed (Gola)
Handleless / recessed (Gola)
Best for
A fully handleless look with a continuous horizontal line, and a good fit where circulation is tight because nothing protrudes.
Watch out
The aluminium channel collects dust and grease and must be wiped along its length; a door out of alignment telegraphs down the whole rail.
Handle approach — Integrated J-pull
Integrated J-pull
Best for
A handleless front with nothing to catch on — fingers hook into a J-profile cut into the door's top edge, so the line stays flush without a channel in the carcass.
Watch out
The recess collects dust and grease and needs wiping. On base units the grip is at the top edge and on wall units at the bottom, so the two feel different in use.

Supply and installation confirmed with your specification.

KIT-09

Corner solution

Corner solution — Blind corner shelf
Blind corner shelf

Fixed L-shelves, reach in

Best for
Accepting a lost corner to keep the budget in the doors and fronts where it shows.
Watch out
The space is genuinely unreachable — it becomes storage nobody uses, which is a real loss in a small kitchen.
Corner solution — Corner carousel (lazy Susan)
Corner carousel (lazy Susan)

Trays revolve on a centre pole

Best for
Getting usable access to a blind corner without bespoke joinery.
Watch out
The rotating tray wastes the corner volume it turns in, and heavy items unbalance it.
Corner solution — Magic-corner swing-out
Magic-corner swing-out

Front baskets swing out, rear baskets slide forward

Best for
Small kitchens where the corner has to earn its volume.
Watch out
The most mechanism in the kitchen, so the most to go wrong; alignment is fussy and service means a specialist.

Supply and installation confirmed with your specification.

KIT-02

Kitchen tier ladder

Kitchen tier ladder — Bespoke
Bespoke
Best for
Where the joinery is genuinely bespoke — non-standard dimensions, unusual materials, a specific detail.
Watch out
Bespoke means longer lead time and less margin for a late change; the drawing has to be right.
Kitchen tier ladder — Essential
Essential
Best for
A sound, honest kitchen where the budget is better spent on getting the wet zone right than on finish.
Watch out
The specification is decided for you; expect fewer choices in fronts, hardware and internal fittings.
Kitchen tier ladder — Signature
Signature
Best for
The middle of the ladder, where finish and hardware quality start to show daily.
Watch out
Easy to spend here on what shows and under-specify what does not — the carcass matters more than the front.

Supply and installation confirmed with your specification.

KIT-01

Kitchen layout

Kitchen layout — Galley
Galley

Plan: two facing runs with a 1,500 mm aisle as drawn, no corners

Best for
Narrow plans.
Watch out
Whether two people can pass while cooking depends on the clear aisle left with appliance doors and drawers open, and on how many cook at once — check the illustrated 1,500 mm aisle against your appliances and household. Door swings at either end can also fight the run.
Kitchen layout — L-shaped
L-shaped

Plan: a 1,800 mm run turns along the side wall, one corner

Best for
The general-purpose answer — works in most rooms and leaves a natural dining or circulation zone.
Watch out
The corner is dead volume unless a corner solution is specified with it.
Kitchen layout — Straight
Straight

Plan: one 4,200 mm run on one wall, no corners

Best for
Small apartments and utility runs where the kitchen is one wall.
Watch out
Everything competes for one run — sink, hob and fridge crowd each other and prep space suffers.
Kitchen layout — U-shaped
U-shaped

Plan: runs on three walls, joined at two corners

Best for
Cooks who want maximum storage and worktop with everything in reach.
Watch out
Needs real floor width; two corners means two corner problems and a closed-in feel in a small room.

Supply and installation confirmed with your specification.

KIT-10

Sink-run material

Sink-run material — Aluminium-frame ACP infill
Aluminium-frame ACP infill
Best for
The wet run and the sink base — the case aluminium composite exists for.
Watch out
It is a construction choice, not a finish: it does not change how the kitchen looks, so it is easy to cut and regret.
Sink-run material — Aluminium-honeycomb panel
Aluminium-honeycomb panel
Best for
The wettest positions, and where weight matters as well as water.
Watch out
Cut edges and fixings need the right detail; it is not forgiving of on-site improvisation.
Sink-run material — HPL-faced EN 636-3 plywood
HPL-faced EN 636-3 plywood
Best for
A middle path where a timber substrate is wanted and exposure is real but not constant.
Watch out
Grade and glue line vary widely between suppliers — the name on the sheet is not a specification.

Supply and installation confirmed with your specification.

KIT-03

Island vs peninsula

Island vs peninsula — Island
Island
Best for
Rooms with genuine circulation space on all four sides.
Watch out
Clearance is the whole question; an island in a room that cannot take it makes the kitchen worse, not better.
Island vs peninsula — No island
No island
Best for
Small kitchens where the floor is worth more than the extra worktop.
Watch out
Loses the social centre an island gives; the run does all the work.

Supply and installation confirmed with your specification.

DS69

Backsplash exposure zoning

Backsplash exposure zoning — Backsplash Exposure Zoning
Backsplash Exposure Zoning

Supply and installation confirmed with your specification.

DS71

Backsplash coverage

Backsplash coverage — Backsplash Coverage
Backsplash Coverage

Supply and installation confirmed with your specification.

DS72

Backsplash detailing

Backsplash detailing — Backsplash Detailing
Backsplash Detailing

Supply and installation confirmed with your specification.

DS74

Worktop edge and termination

Worktop edge and termination — Worktop Edge Termination
Worktop Edge Termination

Supply and installation confirmed with your specification.

DS76

Sink support and leak protection

Sink support and leak protection — Sink Support Leak Protection
Sink Support Leak Protection

Supply and installation confirmed with your specification.

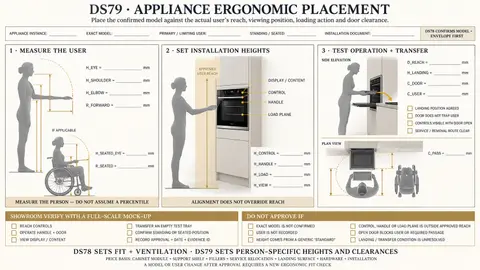

DS79

Appliance ergonomic placement

Appliance ergonomic placement — Appliance Ergonomic Placement
Appliance Ergonomic Placement

Supply and installation confirmed with your specification.

Concept renders — a design render, not a photo. Shown as design options for one decision.
